INCLINE CONVEYOR WITH ALUMINUM FRAME OR STAINLESS STEEL FRAME: WHICH ONE SHOULD YOU CHOOSE?

  • Home
  • Our Blog
  • INCLINE CONVEYOR WITH ALUMINUM FRAME OR STAINLESS STEEL FRAME: WHICH ONE SHOULD YOU CHOOSE?

An incline conveyor is a practical solution for moving products from a lower position to a higher one.
While many conveyors are available on the market, ours is mainly designed for packaging machines, lifting finished bags to a designated position or collection container instead of letting them fall onto the floor.
With a PVC belt, metal frame, motor, built-in fuse protection, dual switches, and stepless speed adjustment, it is built for real industrial use rather than light-duty applications.

We currently offer this conveyor in 2 frame options: aluminum frame and stainless steel frame.
Machine Image CB-12 Electric Incline Conveyor CB-16 Electric Incline Conveyor CB-20 Electric Incline Conveyor CB-12-SS Industrial Incline Conveyor CB-16-SS Industrial Incline Conveyor CB-20-SS Industrial Incline Conveyor
Model CB-12 CB-16 CB-20 CB-12-SS CB-16-SS CB-20-SS
Buy From eBay Amazon Official eBay Amazon Official eBay Amazon Official eBay Amazon Official eBay Amazon Official eBay Amazon Official
Frame Material Aluminum Aluminum Aluminum Stainless Steel Stainless Steel Stainless Steel
Conveyor Length 47" (120cm) 62" (160cm) 78.7" (200cm) 47" (120cm) 62" (160cm) 78.7" (200cm)
Lift Height 25.6"-29.5"
(65-75cm)		 29.5"-35.4"
(75-90cm)		 39.4"-54.3"
(100-138cm)		 25.6"-29.5"
(65-75cm)		 29.5"-35.4"
(75-90cm)		 29.5"-49.2"
(75-125cm)
Max Load Capacity 8.8 lb (4 kg) 15.4 lb (7 kg) 22 lb (10 kg) 8.8 lb (4 kg) 15.4 lb (7 kg) 22 lb (10 kg)
Scroll left or right to view more models if needed.

Quick Choice

Choose the aluminum frame if you prefer more DIY flexibility.

Choose the stainless steel frame if you care more about cleaning, stepless height adjustment, Wear- and Corrosion-Resistant.

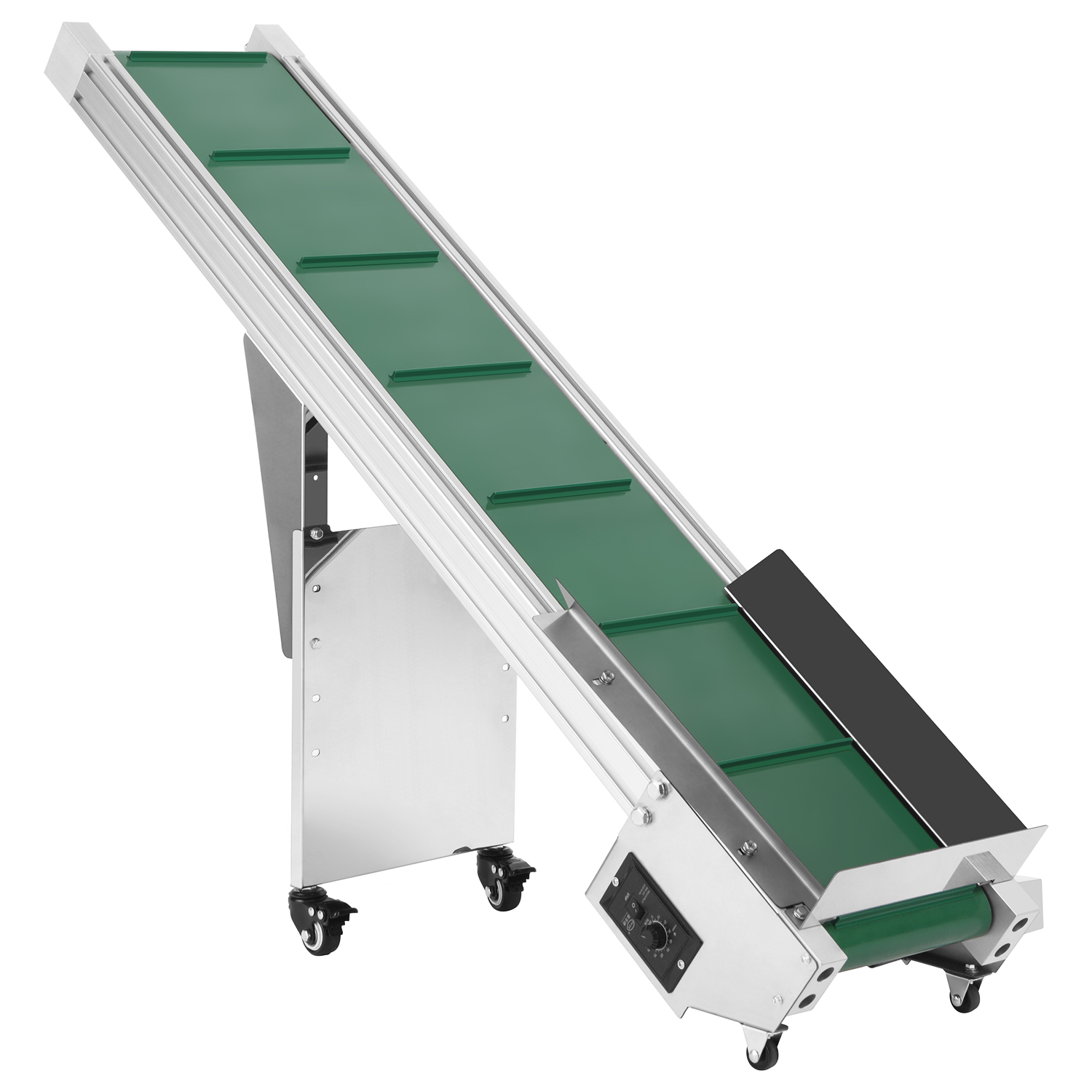

Aluminum Frame Conveyor

Aluminum Frame

This is our original design. It comes standard with 3 metal retaining plates: 1 bottom plate and 2 side plates.

The aluminum frame has slots for fasteners, allowing the side plates to be repositioned as needed. If required, you can also install your own custom-made plates.

For height adjustment, this design uses a bolt-position locking structure for better stability and less wobble. However, the height can only be adjusted in set increments. If your required height does not match the existing hole positions, you may need to drill additional holes yourself.

  • 3 Retaining Plates Included
  • Flexible Side Plate Positioning
  • Supports Custom Plates
  • Stable Height Locking

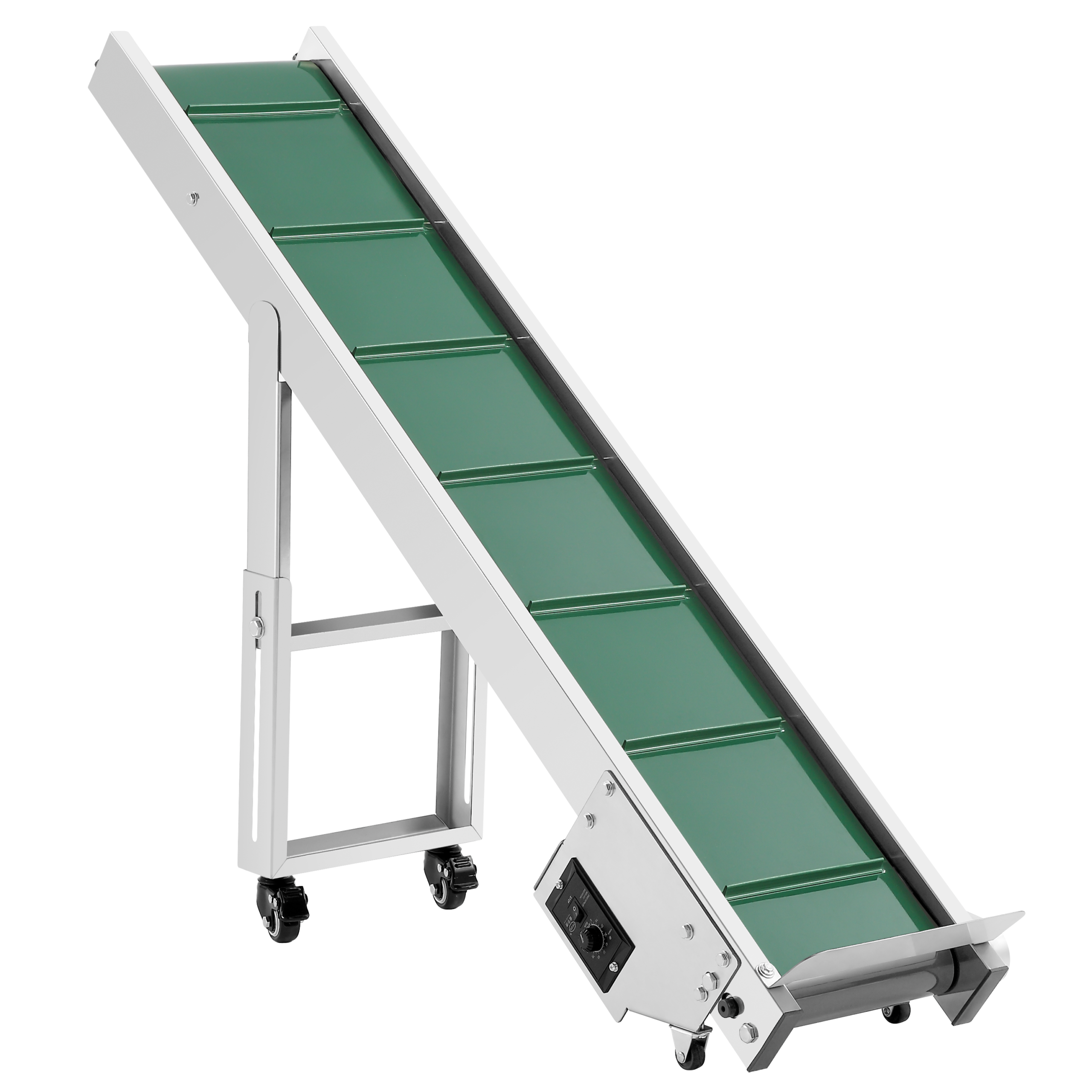

Stainless Steel Frame Conveyor

Stainless Steel Frame

The SS frame and plated metal parts offer good wear and corrosion resistance and are easier to clean. It also uses a chain drive for longer service life and is slightly lower in cost.

This design uses bolt clamping for stepless height adjustment. However, compared with the aluminum-frame version, the support may feel less stable and show some wobble when the conveyor is moved, although this does not affect normal operation.

It comes with only 1 bottom retaining plate and no side plates. Not ideal for adding user-made side plates, as extra drilling on the SS frame may be required and cannot be reversed.

  • Stepless Height Adjustment
  • Longer-Life Chain Drive
  • Wear- and Corrosion-Resistant
  • Easy to Clean
  • Slightly Lower Cost
